daq_ctrl Process
The run control program (CTRL)
coordinates all activities in data taking and gives
an operator the full control over entire DAQ system.
This is a GTK+ [6] program which provides a graphical

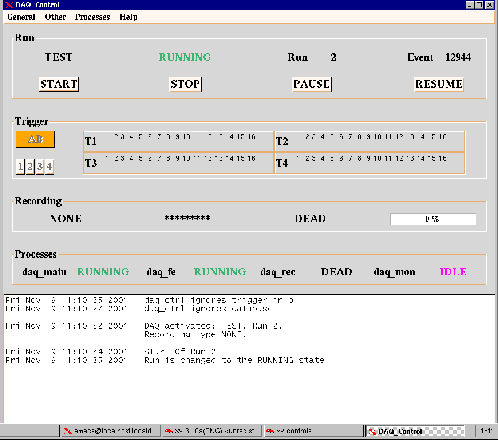

interface shown on Fig. 3.
Figure 3:
Run Control Window.
|
At the top it has a menu bar with four menus:
- General - general commands: Startup - to startup the
DAQ system, Shutdown -
to shutdown the system,
Quit - to quit the program.
- Other - mixture of different commands:
- Edit logfile. Usually all operator actions and
changes of the run state are written in a log-file
located in the $DAQLOG directory. Operator can manually
edit the log-file. Warning: after finishing of the editing
session don't forget to exit the editor, otherwise, there
is a danger of discrepancy between the edited file and real
log-file.
- Clear messages. If the operator feels a need to clear
all information
messages in the ``message'' window, select this menu entry.
- Change tape. If the operator wants to change the tape without
shutting down the DAQ system, he should
stop the run and select this menu entry.
- Processes gives manual control on the DAQ processes to experts.
The operator can kill or restart them.
By default, at the start of each run the program
connects to the trigger program and requests
the trigger parameters. This feature also can be
switched off from this menu.
Similarly the connection
to the DAQ database can be switched off.
- Help - contains one entry (Browser) which starts HTML
browser containing useful information.
The main window can be divided on five parts.
The first part contains
run related information: run type (e.g., PHYSICS),
run state (e.g., RUNNING), run number,
number of recorded events and buttons to start, stop, pause and
resume the run.
An extract of trigger information is in the second part.
The third part describes recording: recording media (none, disk only,
tape only, both disk and tape), VID (Visual IDentifier) of tape if any,
recording state.
The fourth part is about the state of the processes running
on the main machine. There are four processes on the main machine:
daq_main, daq_fe, daq_rec and daq_mon.
The fifth part is the ``message'' window.
Possible states
and their color coding
is shown in the Table 9.
Table 9:
Color coding of object states.
Color |
Meaning |
Comments |
white |
item is DISABLED |
used for daq_rec and daq_mon |
black |
item is DEAD or not started |
everything in this state when
the system shuted down |
darkblue |
item is READY to start |
|
green |
item is RUNNING and data are arriving |
|
cyan |
item is IDLE (running but there has been no data recently) |
used for the daq_mon process only
and indicates that there is no connection to
the monitor daemon either because of problem in
the daemon or because nobody wants to monitor
data |
tan |
item is PAUSED |
|
brown |
item is STOPPED |
|
yellow |
item has a PROBLEM |
|
red |
item has returned an ERROR status |
|
|
The daq_ctrl process writes three log-files in the directory $DAQLOG.
They are DAQ_date_time.log containing all messages from
the message window plus some additional information,
daq_ctrl_run.cfg with the last run number, and
daq_ctrl_tape.cfg with the information about the last used tape.
